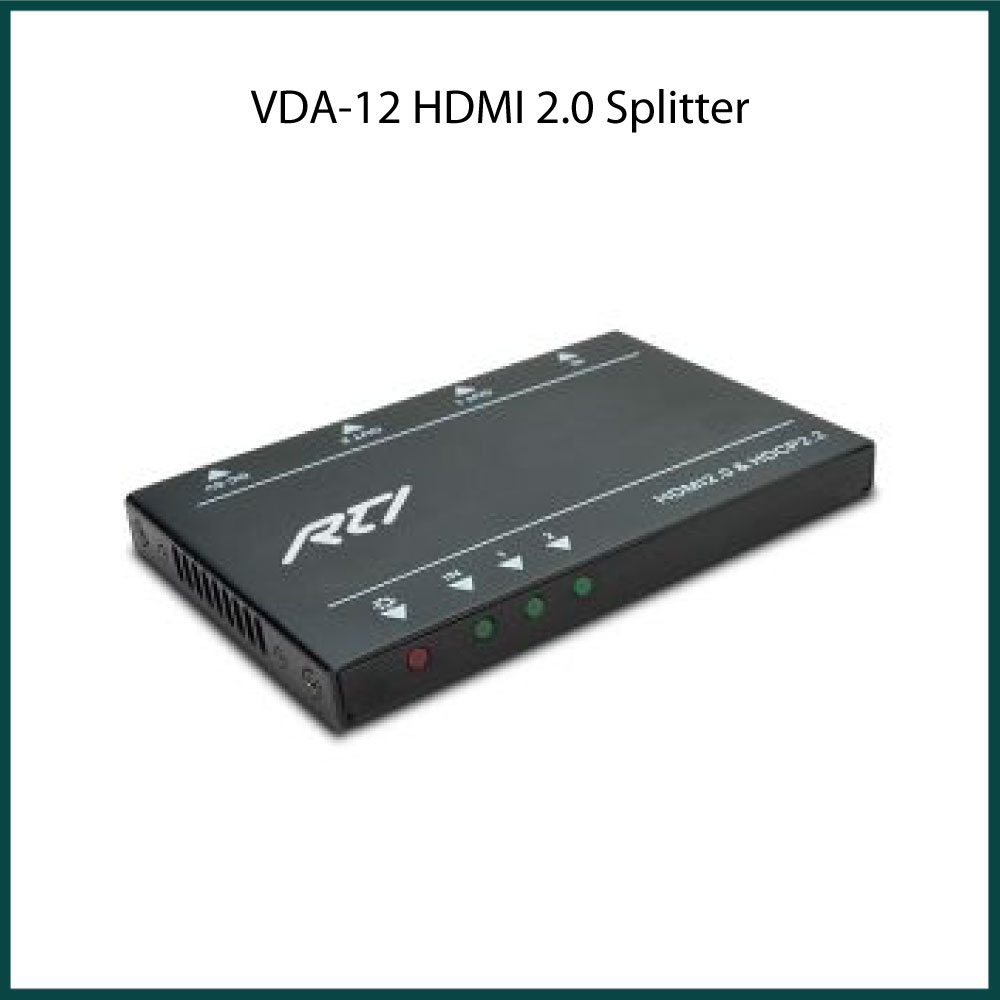

The VDA-12 is an HDMI splitter that delivers 4K video signal from one source to two displays simultaneously. Compliant with HDMI2.0 and HDCP2.2, the VDA-12 supports resolutions up to 4K and supports 3D at 1080.
By auto-detecting the input resolution and with the built-in EDID management, the VDA-12 automatically adjusts the output resolution to fit both connected displays.
|Power Supply||+5 VDC, 2A|
|Mounting||Wall / Surface mount or Free standing|
|Dimensions WxHxD||4.02” (102mm) x 0.43” (11mm) x 2.75” (70mm)|
|Weight||0.21 lbs (97g)|
|Operating Temperature||C -10 to +40 degrees F +14 to +104 degrees|
|Operating Humidity||5% to 95% Non-condensing|
|Digital Video Input||One HDMI|
|Digital Video Output||Two HDMI|
|Compliance||HDMI 2.0, HDCP 2.2|
|Resolution Range||720×480@60Hz to 4Kx2K@60Hz 4:4:4, 1080p 3D|
|Supported Audio Formats||Dolby Digital, DTS, DTS-HD, PCM|
|EDID Management||Built-in EDID management|
|Front Panel LEDs||Connection Status, HDCP Compliance Status|
|USB||Micro USB for Firmware Update|
|Warranty||Three Years (Parts & Labor)|
All features and specifications subject to change without notice.
