VXT-Ux HDBaseT Class C Video Extender Set

Provides a companion remote for use with the RTiPanel and Virtual Panel apps.
Tracks page changes to stay in sync with one or more apps.
Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee® technology).
Remote finder beeper allows user to easily locate SURFiR by pressing a button on their smart phone or tablet.
Ergonomic design permits effortless, one-handed operation.
Completely customizable and programmable.
Security screw on battery door for hotel applications.
Inexpensive and requires no direct programming.*
Includes eight buttons that can be custom labeled.
Select between 433MHz and 2.4GHz RF operation.
Works with any XP series control processor.
Battery low indicator.
Uses 4 AAA batteries.

* There is no USB port on the SURFiR. Programming is done in Integration Designer which generates a “code key” that is input on remote keypad.

Açıklama

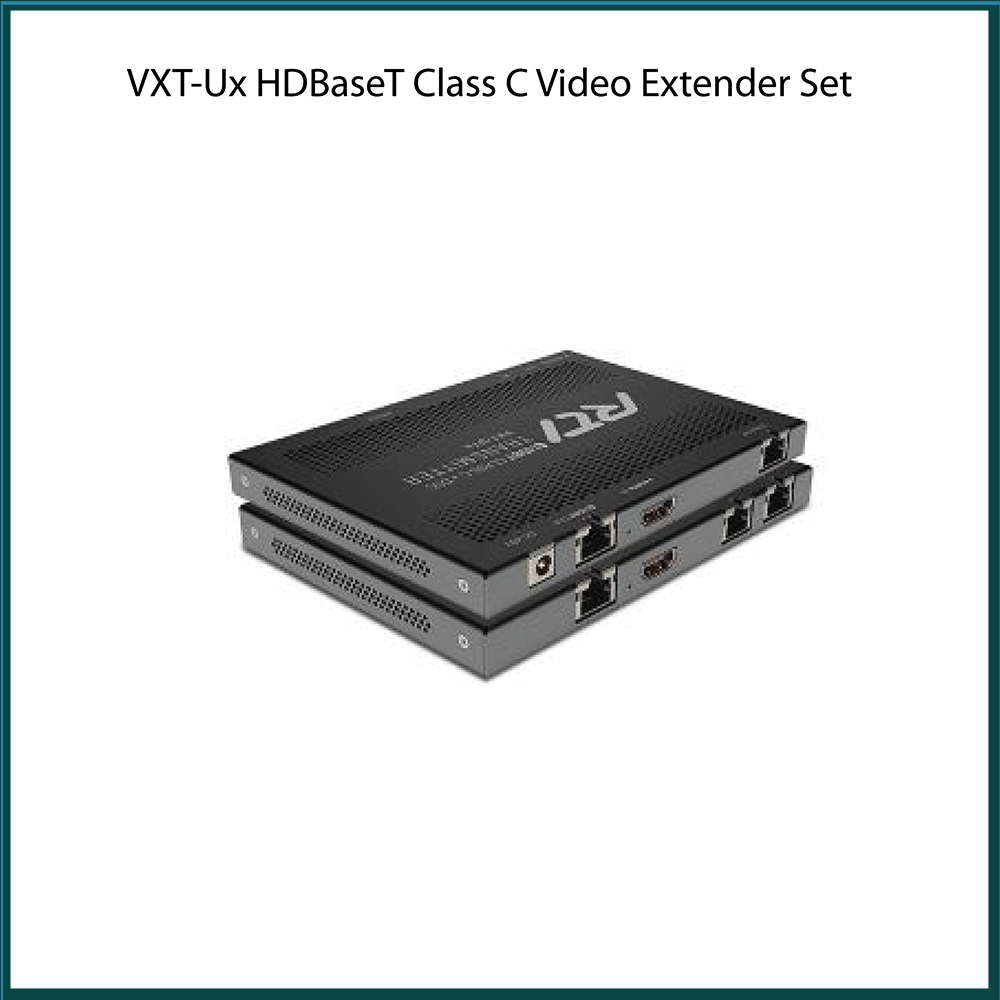

VXT-UTx Transmitter
The VXT-UTx HDBaseT Transmitter delivers visually lossless HDMI 1080p video signal over a single Cat5e/6/7 cable up to 492ft (150m) and a 4K signal up to 328ft (100m) to the VXT-URx HDBaseT Receiver using Display Stream Compression. The VXT-UTx powers the VXT-URx through the Category cable using PoH (Power over HDbaseT). It also transmits an IR or RS232 signal through the same cable to control the remote display or projector.

VXR-UTx Receiver
The VXT-URx HDBaseT Receiver receives visually lossless HDMI video signal over a single Cat5e/6/7 cable from a VXT-UTx HDBaseT Transmitter or from a VHU-8x HDBaseT Matrix Switcher using Display Stream Compression. The VXT-URx is powered through the connected Category cable using PoH (Power over HDbaseT). It also receives an IR or RS232 control signal through the same cable and delivers it to the connected display or projector.

Important Note: Available in select markets. Please contact your local RTI representative for availability.

VXT-Ux HDBaseT Class C Video Extender Set
